Non-invasive Early Response Monitoring of Nanoparticle-assisted Photothermal Cancer Therapy Using 18F-FDG, 18F-FLT, and 18F-FET PET/CT Imaging

Jesper Tranekjær Jørgensen1,*, Kamilla Norregaard1,*, Marina Simón Martín1, Lene Broeng Oddershede2, Andreas Kjaer1 Corresponding address

1. Cluster for Molecular Imaging, Dept. of Biomedical Sciences and Department of Clinical Physiology, Nuclear Medicine & PET, Rigshospitalet and University of Copenhagen, Denmark
2. Niels Bohr Institute, University of Copenhagen, Denmark
*Contributed equally

This is an open access article distributed under the terms of the Creative Commons Attribution (CC BY-NC) license (https://creativecommons.org/licenses/by-nc/4.0/). See http://ivyspring.com/terms for full terms and conditions.
How to cite this article:
Jørgensen JT, Norregaard K, Simón Martín M, Oddershede LB, Kjaer A. Non-invasive Early Response Monitoring of Nanoparticle-assisted Photothermal Cancer Therapy Using 18F-FDG, 18F-FLT, and 18F-FET PET/CT Imaging. Nanotheranostics 2018; 2(3):201-210. doi:10.7150/ntno.24478. Available from http://www.ntno.org/v02p0201.htm

Abstract

Rationale: Since its first implementation nanoparticle-assisted photothermal cancer therapy has been studied extensively, although mainly with focus on optimal nanoparticle design. However, development of efficient treatment protocols, as well as reliable and early evaluation tools in vivo, are needed to push the therapy towards clinical translation. Positron emission tomography (PET) is a non-invasive imaging technique that is currently finding extensive use for early evaluation of cancer therapies; an approach that has become of increasing interest due to its great potential for personalized medicine.

Methods: In this study, we performed PET imaging to evaluate the treatment response two days after nanoparticle-assisted photothermal cancer therapy in tumor-bearing mice. We used three different tracers; 2′-deoxy-2′-18F-fluoro-D-glucose (18F-FDG), 3′-deoxy-3′-18F-fluorothymidine (18F-FLT), and O-(2'-18F-fluoroethyl)-L-tyrosine (18F-FET) to image and measure treatment induced changes in glucose uptake, cell proliferation, and amino acid transport, respectively. After therapy, tumor growth was monitored longitudinally until endpoint was reached.

Results: We found that nanoparticle-assisted photothermal therapy overall inhibited tumor growth and prolonged survival. All three PET tracers had a significant decrease in tumor uptake two days after therapy and these changes correlated with future tumor growth, with 18F-FDG having the most predictive value in this tumor model.

Conclusion: This study shows that 18F-FDG, 18F-FLT, and 18F-FET are all robust markers for the treatment response of photothermal therapy, and demonstrate that PET imaging can be used for stratification and optimization of the therapy. Furthermore, having a selection of PET tracers that can reliably measure treatment response is highly valuable as the individual tracer might be excluded in certain applications where physiological processes limit their contrast to background.

Keywords: Photothermal therapy, nanoparticles, PET imaging, response monitoring

Introduction

Photothermal cancer therapy is a treatment strategy that utilizes light-to-heat converting nanoparticles embedded in the tumor to create local hyperthermia and ablation by irradiation of near-infrared (NIR) light [1-6]. As the nanoparticles can be designed to be biocompatible and the laser employed is in the non-phototoxic NIR region, this strategy is thought to be highly target specific with minimal adverse effects. With the perspective of translating photothermal therapy to clinical settings, there is now an increasing need for in vivo evaluation of the therapy with the help of companion diagnostics that can be used for early prognosis and treatment optimization.

Traditionally, evaluation of anti-cancer therapeutics has relied on changes in tumor size and burden as readout for therapeutic efficacy [7]. The process of tumor shrinkage/growth can, however, be fairly slow, and changes can often first be detected late after treatment initiation. In addition, tumor size may not reflect efficacy of cancer therapy, e.g. as seen in pseudoprogression during successful immunotherapy. In contrast, positron emission tomography (PET) is a non-invasive molecular imaging technique that provides information on the biological functionality of the tumor based on uptake of a radiolabeled tracer. Changes in tracer uptake after treatment can be used for early response evaluation and to predict treatment outcome, thereby identifying responders from non-responders and facilitating better management of treatment planning [8]. In particular glucose analogue, 2′-deoxy-2′-18F-fluoro-D-glucose (18F-FDG), has been established as a robust tool, based on the high rate of glucose consumption commonly found in cancer cells, for tumor detection, diagnosis, early treatment evaluation, and patient stratification. 18F-FDG is taken up by cells by the same pathway as glucose but gets trapped after phosphorylation by hexokinase in its first metabolite form, as it cannot undergo further metabolization [9].

Previously, we have shown that 18F-FDG uptake is significantly reduced after photothermal cancer therapy in human tumor xenografts in mice and can be used as a prognostic marker for the therapeutic outcome [10]. Although imaging with 18F-FDG shows great promise for early response evaluation of photothermal therapy there are biological limitations to the use of 18F-FDG that can hamper its specificity. For example, biological processes, such as inflammation, can change the uptake of 18F-FDG [11, 12]. When inflammation occurs in response to cancer therapy, it can lead to an overestimation in the 18F-FDG tumor signal due to the increase of activated inflammatory cells in the target tissue [13]. Also there has to be adequate contrast between target and background. This sometimes represents a problem in tumors with inherent low glucose uptake or with tumors where the adjacent tissues have a naturally high glucose turnover, e.g., brain tumors. As a consequence 18F-FDG imaging is not applicable for all tumor types and is, e.g., in clinic not used routinely for imaging of brain tumors and prostate cancer [14, 15]. Also the robustness of 18F-FDG PET for breast cancer is much debated [16, 17].

Apart from glucose consumption, cell proliferation is usually also increased in cancerous tissue and hence may be a better marker to image in cases where 18F-FDG cannot be used reliably. The tracer 3′-deoxy-3′-18F-fluorothymidine (18F-FLT) is a thymidine analogue that has been successfully used to image cell proliferation in vivo [18]. Similar to 18F-FDG, 18F-FLT is taken up by the cell where after it is phosphorylated by thymidine kinase 1 and gets trapped intracellularly, thereby visualizing nucleotide transport [19, 20]. However, 18F-FLT is not incorporated into DNA but is considered a surrogate marker of DNA synthesis. For imaging of brain tumors, where background uptake of 18F-FDG is high and 18F-FLT is less valuable as it does not cross the intact blood-brain-barrier, the radiolabelled amino acid analogue O-(2'-18F-fluoroethyl)-L-tyrosine (18F-FET) has been shown to be a good marker [21, 22]. 18F-FET is taken up by the cells via the L-type amino acid transport system, however, it is neither incorporated into proteins nor metabolized. Therefore it is not trapped intracellularly, and consequently 18F-FET is mainly visualizing amino acid transport rates [23].

All three PET tracers mentioned above have previously been used both pre-clinically and clinically for cancer imaging and treatment evaluation. However, dependent on the mechanism of action induced by the treatment as well as tumor type, one tracer could be more suitable than the others, and selecting the right one could improve the outcome for the individual patient. To our knowledge, so far only 18F-FDG has been used for PET-based imaging and treatment evaluation of photothermal cancer therapy [10, 24-26]. Therefore, the aim of the study was for the first time to examine the performance of 18F-FLT and 18F-FET PET imaging for treatment response evaluation of photothermal cancer therapy in a tumor model in mice and compare it to that of 18F-FDG.

Materials and Methods

Silica-gold nanoshells

Silica-gold nanoshells (NS) consisting of a 119 ± 5 nm diameter silica core surrounded by a 19 nm thick gold shell were obtained from NanoComposix, USA (overall diameter of 157 ± 9 nm). The size of the particle was measured using transmission electron microscopy by the supplier. The maximum absorbance was measured to be 804 nm in water using a UV-visible spectrometer also provided by the supplier.

Animal model

All animal studies were approved by the Danish Animal Welfare Council, ministry of Justice. Five weeks old female Balb/c mice (Charles River) were allowed to acclimatize for one week with access to water and chow ad libitum. Mouse colon carcinoma cell line (CT26; obtained from ATCC) was cultured in RPMI-1640 medium supplemented with 10% fetal bovine serum and 1% penicillin-streptomycin at 37 °C and 5% CO2. Cells were harvested by trypsinization at a confluence of 80-90% and subcutaneous tumors were established in the left flank of the animals by inoculation of ~ 3x105 CT26 cells resuspended in 100 μl growth media. The tumor growth was followed by caliper measurements and tumor volume calculated as ½(length x width2). The animals were grouped in three studies representing 18F-FDG, 18F-FLT, and 18F-FET, and within these three groups, three subgroups representing: NS and laser irradiation (NS group); saline and laser irradiation (saline group); or NS but no laser irradiation (sham group). The number of animals in the 18F-FDG study was: n = 7 (NS group), n = 6 (saline group), and n = 7 (sham group). The number of animals in the 18F-FLT study was: n = 8 (NS group), n = 7 (saline group), and n = 6 (sham group). The number of animals in the 18F-FET study was: n = 7 (NS group), n = 7 (saline group), and n = 7 (sham group).

Photothermal Therapy

Immediately after a baseline PET/CT scan, all animals were injected with 190 μl of either 4.9x1010 NS/ml or saline via the tail vein while being anesthetized by breathing sevoflurane. 24 hours after intravenous injection of either NS or saline, all animals were again anesthetized by breathing sevoflurane and placed on an irradiation platform with temperature control to maintain their body temperature. The tumors in the NS and saline groups were then irradiated for 5 minutes with an 807 nm diode laser with an intensity of 1.5 W/cm2 (beam diameter of ~1 cm). In addition, animals were injected subcutaneously with ~70 μl of 0.3 mg/ml of Temgesic (1:9 ratio to sterile water) for pain relief every 6-8 hours for 24 hours after treatment. After treatment, the tumor growth was monitored using caliper measurements and the animals were euthanized when their tumor volume exceeded 1000 mm3.

Thermographic temperature measurements

While being irradiated (or sham treated), the surface temperature of all tumors was measured using thermographic imaging (FLIR T420). Images were recorded every 30 seconds and the maximum temperature as a function of time was extracted by analysis with FLIR tools software.

PET/CT

All animals were PET/CT scanned the day before laser treatment (baseline scan) and 2 days after treatment (day 2). In addition, they were CT scanned 7 days after treatment. During the entire procedure, animals were anesthetized by breathing sevoflurane and their temperature kept stable with either a heating pad or lamp. As all animals were treated with Temgesic that causes loss of appetite and thereby weight loss, they were not fasted before PET scans. 18F- FDG, 18F-FLT, and 18F-FET were obtained from the daily productions for clinical use at Department of Nuclear Medicine & PET, Rigshospitalet, Denmark. Animals were administered ~10 MBq 18F-FDG or 18F-FLT via the tail vein 1 hour before the PET scan, or ~5 MBq 18F-FET via the tail vein 30 minutes before the PET scan. In between the 18F-FDG or 18F-FET injections and the PET/CT scans, the animals were kept anesthetized. Static PET images were acquired 60-70 min post injection (30-40 min post injection for 18F-FET) with an energy window of 350-650 KeV and a time resolution of 6 ns. CT scans were acquired using 360 projections, 65 kV, 500 μA and 400 ms. PET images were reconstructed using a 3-dimensional maximum a posteriori algorithm with CT-based attenuation correction. PET and CT images were co-registered and analyzed using Inveon software (Siemens). The mean percentage of injected dose per grams of tissue (%ID/g) in the tumor volume was extracted by manually drawing regions of interest on the entire tumor.

Autoradiography and hematoxylin and eosin (H&E) staining

For each tracer, a NS, saline and sham group (n =3 in each group) were treated and irradiated according to the above described treatment protocol. At day 2 after treatment, they were injected with tracer via the tail vein while being anesthetized by breathing sevoflurane. One hour after injection (or 30 min for 18F-FET), the animals were euthanized and the tumors resected. Tumors were immediately frozen by immersion in isopentane and embedded in tissue-tek and when it had solidified, the tumors were sectioned into ~9 µm slices using a cryostat. The sections were exposed on phosphorous films and imaged on a Cyclone plus imaging system (Perkin Elmer) for visualization of the tracers' intratumoral distribution. Thereafter the sections were dried overnight at room temperature and transferred to -80°C for further analysis.

For H&E staining, frozen sections were left to equilibrate to room temperature for 30 minutes and were subsequently immersed in cold acetone and then in HistoClear solution (Chemie Brunschwig) to achieve removal of tissue-tek. The sections were then rehydrated through a series of ethanol solutions and transferred to running water. Afterwards, they were stained with hematoxylin for 3 minutes, rinsed in tap water and finally stained with eosin for 1 minute. Slides were scanned with an Axio Scanner (Axio scan, Carl Zeiss, Germany).

Statistical analysis

The temperature elevation measured on the surface of the tumor with FLIR camera and the mean uptake ratios of the PET tracers were compared with one-way ANOVA with Tukeys post-hoc test. Survival was based on tumor volumes ≥ 1,000 mm3 (humane endpoint), and curves were analyzed using Log-rank Mantel-Cox test. The mean and max uptake of PET tracers and mean CT volume in different groups were compared between time points with a two-way ANOVA with Sidak post-hoc test. Statistical analyses were performed using GraphPad Prism 6.

Results

Treatment response to photothermal therapy in vivo using silica-gold nanoparticles as photothermal agents

In this study we used 150 nm in diameter NS as the heat-transducing agent, a class of NIR-absorbing nanoparticles that has been widely used for photothermal therapy in animal studies and has been included in a few FDA-approved clinical trials [27-29]. We have in previous studies made in-depth characterization of the properties and heating capabilities of these NS both as single particles and in bulk [10, 24]. NS have been shown to accumulate passively in tumors upon intravenous administration in several different tumor models [10, 30-34] and to have good treatment effect in the same murine colorectal tumor model as used in this study [6]. Further, toxicology studies show no signs of adverse effects [35, 36].

Each animal was scanned with only one of the PET tracers so the study consisted of three substudies where animals were scanned with either 18F-FDG, 18F-FLT, or 18F-FET before and after treatment (see the experimental timeline in Figure 1A). Within each substudy there were three treatment groups receiving either: NS and laser irradiation (NS group); saline and laser irradiation (saline group); or NS but no laser irradiation (sham group). The latter two groups serve as control groups for the influence of laser irradiation and the NS per se, respectively.

Approximately two weeks before the study was initiated, tumors were established subcutaneously in the left flank of female Balb/c mice by inoculation of CT26 cells. Two days before photothermal treatment the mice were grouped so the mean tumor volume, assessed by caliper measurements, was matched for all three groups. Furthermore, the mean tumor volumes in the groups were also kept consistent between the three studies (see Figure 1B).

 Figure 1

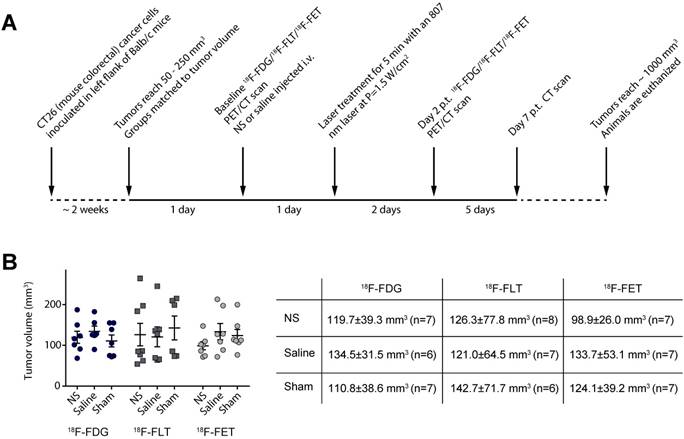

Experimental timeline for the study. (A) The experimental setup was the same for all three PET tracers. (B) Graph shows the tumor volume of each individual animal whereas the table shows mean ± standard deviation as well as number of animals in each group.

Nanotheranostics Image (Click on the image to enlarge.)

After the baseline PET/CT scan, the animals were injected intravenously with either NS or saline. The nanoparticles were allowed to accumulate for a day, where after the animals were treated for 5 min with a 807 nm diode laser covering the tumor region and using a laser intensity of 1.5 W/cm2. Figure 2A shows the average maximum temperature development for all groups during laser irradiation measured using a thermographic camera on the surface of the tumor. In the NS groups the average maximum temperature was 50.6 ± 1.6 °C in the 18F-FDG study, 49.4 ± 2.0 °C in the 18F-FLT study, and 52.0 ± 1.5 °C in the 18F-FET study. In comparison, the average maximum temperature in the saline groups was 43.5 ± 0.4 °C in the 18F-FDG study, 42.3 ± 0.5 °C in the 18F-FLT study, and 45.1 ± 0.5 °C in the 18F-FET study. The average maximum temperatures in the sham groups were all ~31 °C. For all three substudies, the maximum temperature reached in the NS group after 5 min of irradiation was significantly higher than in both the control groups (p ≤ 0.01).

During the entire study, the tumor growth was followed ~3 times a week using caliper measurements, and when the tumor volumes reached 1,000 mm3 the animals were euthanized. The study was terminated at day 60 after therapy, and animals with no tumor regrowth at this time point were considered tumor free. Figure 2B shows that the tumor growth overall was inhibited in animals in the NS group and for all three studies, at least one animal had complete tumor disappearance. In comparison, the tumor growth in the two control groups progressed in a similar manner. This indicates that even though the laser in itself can induce a temperature rise of ~ 10 °C, as represented in the saline groups, it does not inflict enough tissue damage to inhibit tumor growth.

The survival curves for all three studies are shown in Figure 2C. In the 18F-FDG study the median survival was 25 days in the NS group, 12 days in the saline group, and 11 days in the sham group. In the 18F-FLT study the median survival was 24 days in the NS group, 13 days in the saline group, and 13 days in the sham group. And finally, in the 18F-FET study the median survival was 22 days in the NS group, 15 days in the saline group, and 11 days in the sham group. The survival curves for the different treatment groups were compared with a Log-rank (Mantel-Cox test) with p = 0.0099 in the 18F-FDG study, p = 0.0192 in the 18F-FLT study, and p < 0.0001 in the 18F-FET study.

 Figure 2

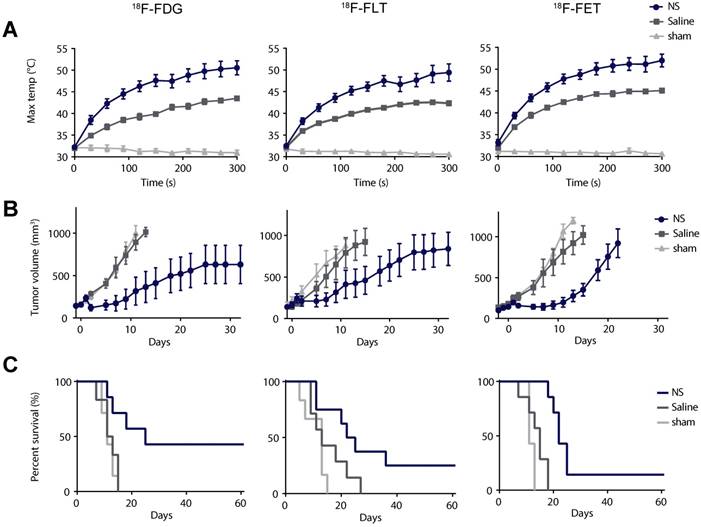

Evaluation of photothermal therapy. (A) Thermographic real-time measurements of maximum tumor surface temperature during irradiation. (B) Tumor growth measured after therapy using a caliper. Data is shown until n ≥ 3. (C) Survival after therapy. In (A) and (B) data shown is mean ± standard error of mean (S.E.M). 18F-FDG: n = 7 (NS group), n = 6 (saline group), and n = 7 (sham group). 18F-FLT: n = 8 (NS group), n = 7 (saline group), and n = 6 (sham group). 18F-FET: n = 7 (NS group), n = 7 (saline group), and n = 7 (sham group).

Nanotheranostics Image (Click on the image to enlarge.)

These results show that in all three studies, NS-mediated photothermal therapy inhibited tumor growth and increased survival compared to groups receiving either only laser irradiation (saline group) or NS injections (sham group).

PET evaluation of photothermal therapy

Visual inspection of PET/CT images revealed no apparent differences in the baseline tumor uptake between treatment groups in the 18F-FDG, 18F-FLT, and 18F-FET study (Figure 3). However, for all three tracers, a reduction in tumor uptake in the NS treated animals was evident between baseline and day 2. This decrease was not observed in animals receiving saline or sham treatment.

These observations were confirmed by quantitative analysis of tracer uptake in 3D ROIs manually drawn on tumor areas (see Figure 4 and extracted values listed in Table 1). For all of the tracers there was no significant difference in the mean tumor uptake at baseline between the three different treatment groups (Figure 4A and Table 1). However, the tumor accumulation of 18F-FLT showed a larger variation between groups, whereas the mean tumor uptake of 18F-FET was slightly lower than for 18F-FDG and 18F-FLT. Two days after treatment, the mean tumor uptake in the NS treated animals was significantly reduced compared to baseline for all three tracers (Figure 4A and Table 1). This reduction was not seen in sham and saline treated animals.

 Figure 3

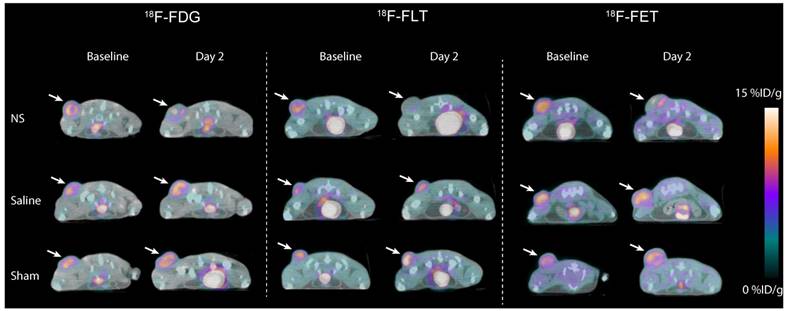

Representative images of 18F-FDG (left panel), 18F-FLT (middle panel) and 18F-FET (right panel) tumor uptake the day before photothermal therapy (baseline) and two days after treatment (day 2). Tumors are marked by white arrows.

Nanotheranostics Image (Click on the image to enlarge.)
 Figure 4

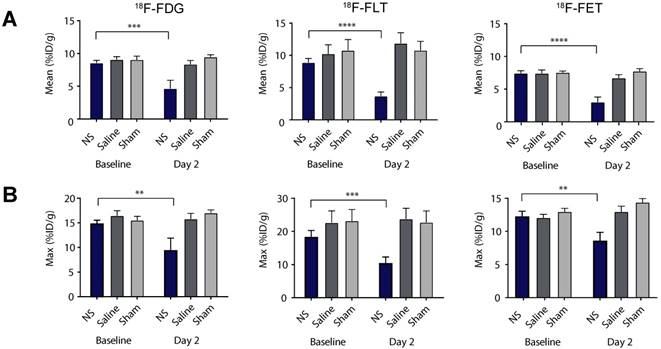

Tumor uptake of the PET tracers. (A-B) The mean and maximum PET tracer uptake (%ID/g) at baseline and day 2 for all NS, saline and sham treated animals in the 18F-FDG (left panel), 18F-FLT (middle panel) and 18F-FET (right panel) studies. Data shown is mean ± S.E.M and **p < 0.01, ***p < 0.001, and ****p < 0.0001. 18F-FDG: n = 7 (NS group), n = 6 (saline group), and n = 7 (sham group). 18F-FLT: n = 8 (NS group), n = 7 (saline group), and n = 6 (sham group). 18F-FET: n = 7 (NS group), n = 7 (saline group), and n = 7 (sham group).

Nanotheranostics Image (Click on the image to enlarge.)

The same trend was found for the maximum tumor uptake, although the changes in accumulation between baseline and day 2 were not as significant (see Figure 4B). Given that photothermal therapy can induce fairly heterogeneous temperatures throughout the tumor, the use of a maximum uptake value, that only carries information about tracer accumulation in a very small portion of the tumor, is likely to be a less robust measure for this type of therapy. Therefore, further analysis was based on the mean uptake only.

Next, we evaluated the mean uptake ratio between day 2 and baseline as a measure of treatment effect (Figure 5A and Table 1). This was found to be significantly lower in all the NS groups compared to the control groups for all tracers. To see if this change in tumor uptake early after therapy could be used as an indicator for treatment outcome we examined the linear correlation between the uptake ratio and survival (see Figure 5B). 18F-FDG showed the highest correlation to survival (r2 =0.62, p = 0.0001), although all three tracers correlated significantly (r2 =0.43, p = 0.0013 and r2 =0.34, p = 0.0057 for 18F-FLT and 18F-FET, respectively).

Finally, as change in tumor growth also is commonly used in the clinic to assess treatment effect, we evaluated the tumor volume from CT scans 7 days after therapy (see Figure 5C). This confirmed inhibited tumor growth in the NS groups compared to the two control groups that both had significant increase in tumor volume at day 7 compared to baseline.

 Table 1

Quantified PET uptake. The table shows the mean tumor uptake on baseline and day 2 and the uptake ratio defined as Day2/Baseline. Values are given as mean ± S.E.M.

Mean uptake NSSalineSham
18F-FDGBaseline (%ID/g)8.6 ± 0.49.1 ± 0.59.1 ± 0.6
Day 2 (%ID/g)4.7 ± 1.38.4 ± 0.69.5 ± 0.3
Ratio (day 2 /baseline)0.52 ± 0.140.93 ± 0.071.06 ± 0.05
18F-FLTBaseline (%ID/g)8.9 ± 0.610.2 ± 1.410.8 ± 1.7
Day 2 (%ID/g)3.7 ± 0.611.9 ± 1.610.8 ± 1.4
Ratio (day 2 /baseline)0.41 ± 0.061.21 ± 0.141.03 ± 0.09
18F-FETBaseline (%ID/g)7.4 ± 0.47.4 ± 0.57.5 ± 0.2
Day 2 (%ID/g)3.0 ± 0.86.7 ± 0.57.7 ± 0.4
Ratio (day 2 /baseline)0.41 ± 0.110.91 ± 0.061.03 ± 0.06
 Figure 5

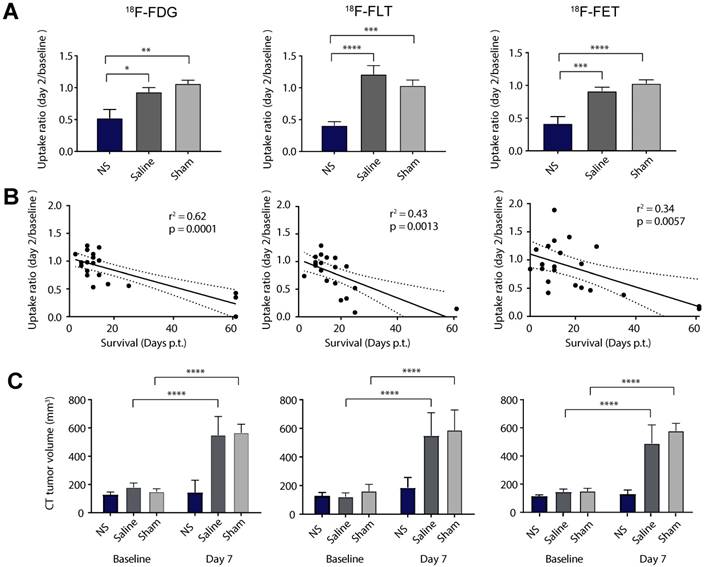

PET/CT-based response analysis. (A) The relative change in mean uptake (day2/baseline) for all NS, saline and sham treated animals in the 18F-FDG (left panel), 18F-FLT (middle panel) and 18F-FET (right panel) studies. (B) The correlation between the relative change in uptake and survival. (C) Tumor volumes derived from CT scans at baseline and day 7. Data shown is mean ± S.E.M and *p < 0.05, **p < 0.01, ***p < 0.001, and ****p < 0.0001. 18F-FDG: n = 7 (NS group), n = 6 (saline group), and n = 7 (sham group). 18F-FLT: n = 8 (NS group), n = 7 (saline group), and n = 6 (sham group). 18F-FET: n = 7 (NS group), n = 7 (saline group), and n = 7 (sham group).

Nanotheranostics Image (Click on the image to enlarge.)
 Figure 6

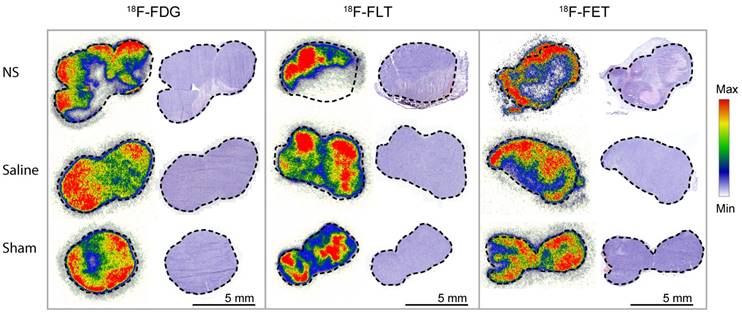

Autoradiography and H&E staining. Tissue sections of tumors from each of the treatment groups. Marked-up line represents the border of the tumor. On the left side, the intratumoral distribution of the representative PET tracer is shown and on the right side, the corresponding H&E staining. Each autoradiography image is scaled to its minimum and maximum value.

Nanotheranostics Image (Click on the image to enlarge.)

Autoradiography and histological analysis of intratumoral tracer uptake

For all three PET tracers, the intratumoral distribution was analyzed by autoradiography two days after photothermal therapy in tumors from each treatment group. For each tumor, the tracer accumulation was compared to hematoxylin and eosin (H&E) staining (see Figure 6). In NS-treated tumors, highly reduced tracer uptake was found to correlate with areas of extensive tumor necrosis. From analysis of the tumors in the control groups, it was evident that the laser or the NS in itself did not cause significant damage to create large areas of necrosis. However, as expected for tumors when they reach a certain size, a small degree of central necrosis was also sometimes observed.

Discussion

Photothermal cancer therapy using light-absorbing nanoparticles as local heat transducers offers high specificity and has been shown to be effective in many different cancer models in animals, while causing minimal side effects [6, 10, 30-34]. The selection of nanoparticles that fulfill requirements for efficient treatment, e.g., high light-to-heat conversion, EPR-suitable sizes, and biocompatibility, is vast and a result of the effort that has been put into developing nanoparticles since the therapy was first introduced [37]. To move the development of this therapy forward and towards clinical translation, protocols for efficacy assessment and optimization are needed. For this, non-invasive diagnostic modalities are of great value as they allow longitudinal tracking of the outcome of therapy, meanwhile providing early treatment evaluation that potentially could aid stratifying patients into responders and non-responders [10, 38-40]

Motivated by this, we have in the current study investigated the use of PET/CT imaging for early evaluation of NS-mediated photothermal therapy in mice bearing subcutaneous murine colorectal tumors. We used 18F-FDG, 18F-FLT, and 18F-FET that are imaging glucose uptake, cell proliferation, and amino acid transport, respectively. 18F-FDG is undoubtedly the most successfully used PET tracer in cancer imaging; however, in some tissues the natural high glucose consumption can prevent its use [11]. Therefore, we also wanted to investigate the use of 18F-FLT and 18F-FET as they may have higher specificity for applications where 18F-FDG is ruled out; or even perform better than 18F-FDG overall. Finally, we examined if any of them could be used to predict long-term treatment outcome. As the three tracers target different cellular pathways, the treatment response might differ especially in the viable cells in the rim of the ablated area. For example, 18F-FLT uptake could be affected more than the other two tracers by changes leading to cell cycle arrest. Also, because cancer treatments often induce an inflammatory response, tracers less prone to accumulate in inflammatory lesions, such as 18F-FET, might have a higher specificity [41].

On the baseline scans we found that all tracers had a fairly high and homogeneous tumor uptake, with only 18F-FLT showing slightly higher variations than the other two tracers. The benefit of this is that the groups can easily be compared and that a markedly reduction in uptake after therapy can be a robust measure of treatment effect. In all three substudies, photothermal therapy resulted in inhibited tumor growth and overall prolonged survival compared to control treated animals. We found that after photothermal therapy, 18F-FDG was on average reduced to 52% of its baseline value in the tumors treated with NS and laser irradiation. In comparison, 18F-FLT and 18F-FET were both reduced to 41% of their baseline value, whereas for all three tracers the uptake in the control groups was not significantly changed on day 2. Treatment-induced inflammation could explain why the reduction in 18F-FDG was slightly smaller compared to the other two tracers. The reduction in uptake in treated areas was confirmed by comparing tracer accumulation in tissue sections measured by autoradiography and H&E staining. It was found that areas of the treated tumors with low tracer uptake coincided with extensive necrotic regions induced by therapy.

Overall, the pronounced reductions in tumor uptake after treatment of all three tracers verify that PET imaging can be used to evaluate the treatment response early after therapy. Somewhat surprisingly, the observed responses from all three tracers were at large similar, suggesting that the major contribution in imaging signal stems from the ablated region where all cells are necrotic. Moreover, to see if the relative change in uptake held information on tumor growth following therapy we investigated the relationship between the uptake ratio (day 2/baseline) and survival for all animals in the studies. We found that tumors with high reduction in uptake at day 2 were also the tumors where the treatment effect was best and the animals lived longest. In particular 18F-FDG had a strong linear relationship between change in uptake and overall survival, while the correlation was moderate for 18F-FLT and weak for 18F-FET. As glucose is essential for energy production, more or less all viable cells will have a continuously basal uptake of 18F-FDG, whereas 18F-FLT and 18F-FET accumulation will be more prone to fluctuations dependent on the physiological state of the cells. Overall these results suggest that for this application, 18F-FDG may be a better prognostic marker than 18F-FLT and 18F-FET.

In each of the NS-treated groups, there were animals with complete tumor regression, however, most animals experienced tumor relapse. Although this was beyond the scope of this study, we believe that the treatment response can be optimized by, e.g., exposure of higher laser intensity, multiple laser irradiations, or combination therapy for synergistic effects. For the purpose of optimizing the therapy, PET imaging would be a highly valuable tool where the tumor uptake early after therapy could be used to determine if the response was as desired or otherwise direct an early change to a strategy that could improve the patient's outcome.

Conclusion

In this study we found that both 18F-FDG, 18F-FLT, and 18F-FET can be used for early non-invasive evaluation of photothermal cancer therapy already two days after treatment. Although 18F-FDG holds the strongest prognostic information in this study, this could vary between tumor models. The robustness of all three tracers in terms of treatment response suggests that the most appropriate tracer can be freely selected without loss of information relative to the other PET tracers. In conclusion, PET imaging using 18F-FDG, 18F-FLT, or 18F-FET, all commonly used in a clinical setting, are reliable methods for evaluation and optimization of nanoparticle-assisted photothermal therapy and shows promise for personalizing therapy.
